This is my setup for NextStep 3.3 on an Asus P2B-F mother board. I am running with a slot 1 Celeron 300A processor and one 128MB DIMM. I built the system on July 22, 1999. Currently I have not applied any available patches.

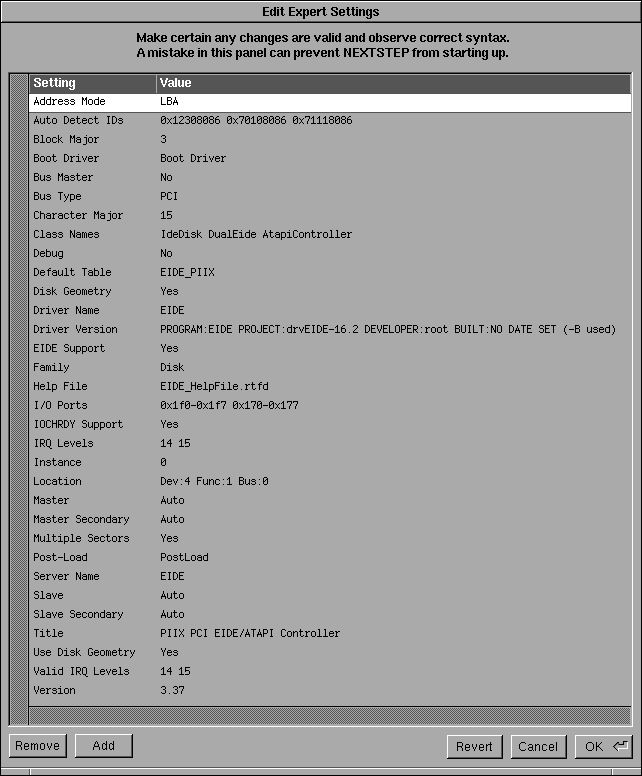

PIIX PCI EIDE/ATAPI Controller
(required to recognize Sony CDU76E-S cd-rom drive as master on secondary IDE controller)

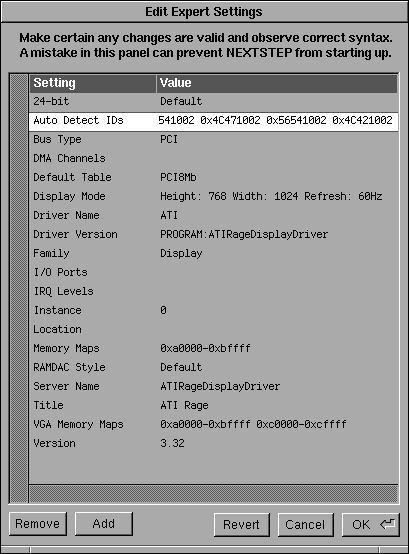

ATI XPert @ Play 98 AGP video card
(had to add auto detect id string 0x4C421002)
(had to add the 'Memory Maps' entry)

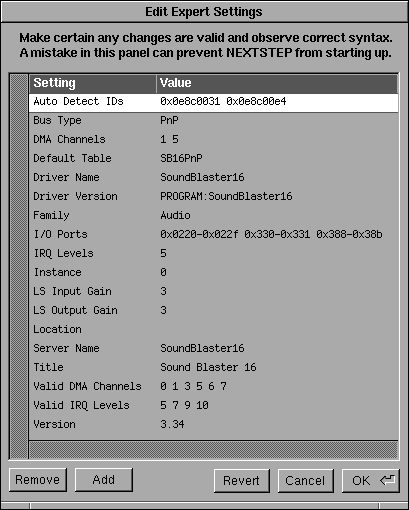

Sound Blaster AWE 64 PNP ISA card
(had to add auto detect id string 0x0e8c00e4)
(Changed I/O Ports string from 0x0220-0x0233 to 0x0220-0x022f)

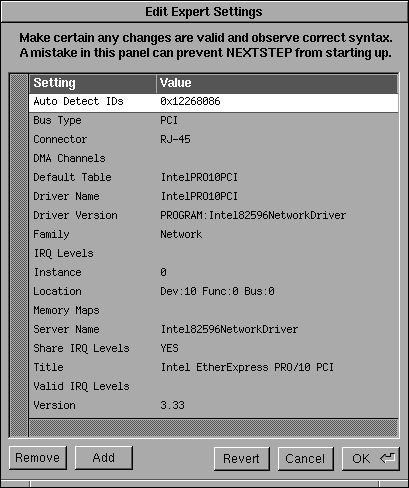

Intel EtherExpress PRO/10 PCI card
(Added Location entry)

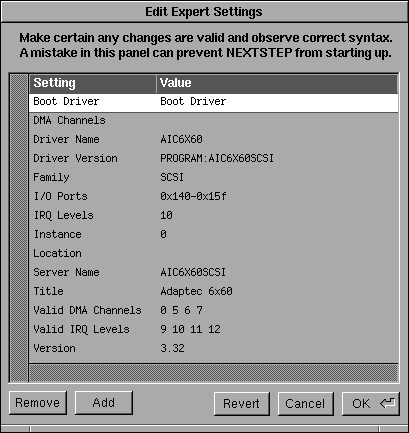

Adaptec 6x60 ISA card
